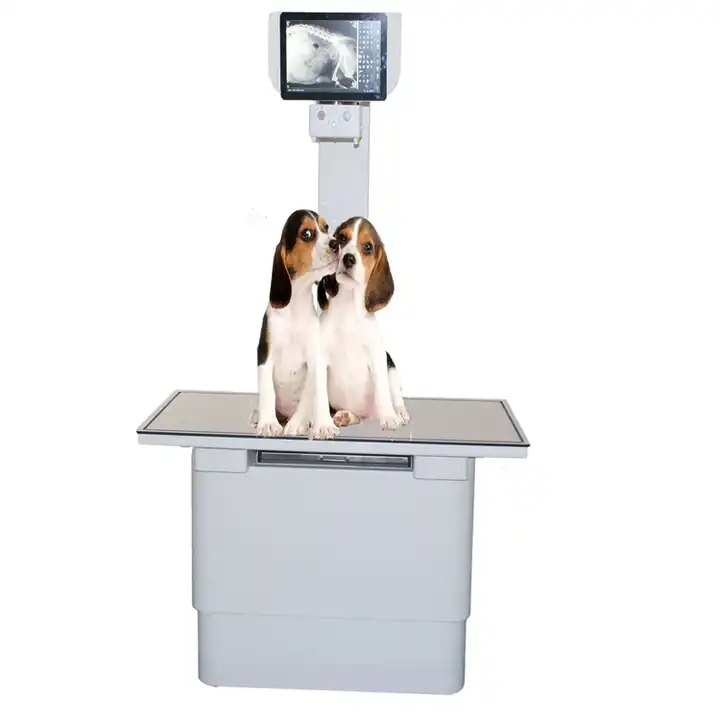

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Product Categories
Jiangsu Xiangyou Medical Instrument Co., Ltd.
Contact Now

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Brand Name : guanxiong

Model Number : XY-DR320

Certification : CE

Place of Origin : jiangsu, China

MOQ : 1 pieces

Price : $29900-16000/sets 1-99 sets

Payment Terms : L/C, T/T

Supply Ability : 500 Set/Sets per Month

Delivery Time : 3-15 work days

Packaging Details : Single package size:117X47X23 cm, weight:20kg

Power Source : Electric

Warranty : 1 Year

After-sale Service : Online technical support

Material : Acrylic, Metal

Shelf Life : 1years

Nominal Electric Power : 20kw(100kv,320mA,100ms)

Instrument classification : Class I

kKV range : 40-125KV

Max output power : 32KW

mA range : 10-400mA

Nominal focal spot value : Large focus 1.2,Small focus 0.6

mAs range : 0.1~500mAs

Function : Medical Diagnosis

Frequency : ≥30kHz

Contact Now

Hot selling animal radiology equipment veterinary xray system x-ray machine dr

Power voltage 1-phase 220VAC ±10%,50Hz,16A；3-phase 380VAC±10%
Maximum Working Frequency ≥30KHz
Nominal Electric Power 20kw(@100kv,200mA,100ms)
KV range 40-125KV
mA range 10-320mA
mAs range 0.1-400mAs
Photoformy time 3ms-6300ms

X ray machine parameter:
Working voltage:40KV-125KV Maximum power (0.1 S): Small focus 20 kw, Large focus 40 kW Nominal value :Large focus 1.2,Small focus 0.6 Maximum heating filament characteristics :5.3A Anode speed (50HZ) :2800rpm Anode angle :12° Inherent filtering: 1.0mmAL/75kV Anode Heat Content: 110KJ(150KHU) Tube component heat capacity: 900KJ(1300KHU)

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Flat panel detector parameter:
Flat Panel Detectors Detector Technology : a-Si Scintillator: CsI Image Size: 35×43 cm Pixel Matrix: 2560×3072 (14×17 in) Pixel Pitch: 140 μm A/D Conversion: 16 bit Minimum Detectable Dose: 14 nGy Maximum Linear Dose (RQA5): 110 μGy Spatial Resolution: 3.6 LP/mm Data Interface: GigE /802.11ac Power Dissipation: 20 W Adapter Input: AC 100-240V,50-60Hz Dimensions: 38×46×1.5 cm weight:3.3kgwireles/2.9kg wired
32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine
Analogue x ray machine accessories:
1. x ray machine with tube and table 1pcs
2. generator 1pcs
Wired DR x ray machine accessries:
1. x ray machine with tube and table 1pcs
2. generator 1pcs
3. wired flat panel detector 1pcs
4. software 1pcs
5. laptop 1pcs
32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine
